Gauges
Full compliment of Faria Marine Instruments on the dash panel along with
a Simrad Navigation unit.
Throttle
A Kobelt Model 2046 Single Lever Control Head used along with Teleflex TFXtreme
cables.
Sound Insulation
2lb/ft, sq 2 in Soundown vinyl foam insulation with neoprene gaskets
Engine Box Lifts
Two Lenco screw jacks raise and lower the center consol engine box with
the touch of a button.

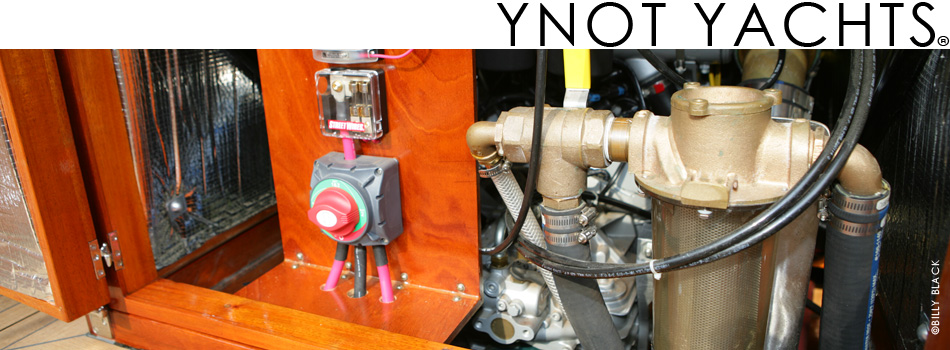

Electrical
Surpasses the requirements of the NMMA Standards, ABYC
Standards and the National Electrical Code.
All wire and cable, regardless of applied voltage is U.L.
listed to 300 volts or more (often to 600 volts) to provide greater
insulating protection. All wire is tin-coated (to prevent corrosion)
stranded copper (for improved flexibility) and sealed in an insulated
jacket.
Each wire is a homerun and terminated with an insulated
solder-less crimp-on ANCOR connector. Insulated ring or captive spade type
terminators were used.
A dual selectable battery system is employed using the
OPTIMA Blue Top Deep Cycle 12 DC Batteries. 100% back up battery power is
provided.
Audio
A complete Audio system was installed with Clarion head
unit, Alpine power amplifier, Bazooka subwoofer and Infinity Marine
speakers.
