YNOT Wilbur

FINISHING SPECIFICATIONS

LOA   25'4"

BEAM   8'0"

DISPLACEMENT  4,000 LBS.

Paint

The hull received numerous coats of AWLGRIP epoxy primer base, followed by four coats of AWLGRIP polyester urethane topcoat, gloss Stark White for the topsides, gloss Claret for the bottom.

The bilge and interior framework received three coats of AWLGRIP polyester urethane topcoat Clear.

Brightwork

The Honduran Mahogany was finished using Smiths CPES as a priming first coat (2 – 3 coats were applied), followed with three coats of AWLSPAR Varnish and 10 coats of AWL-BRITE PLUS Clear Urethane.

Hardware

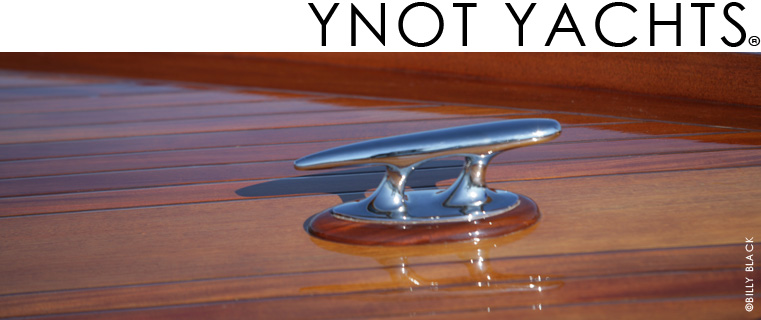

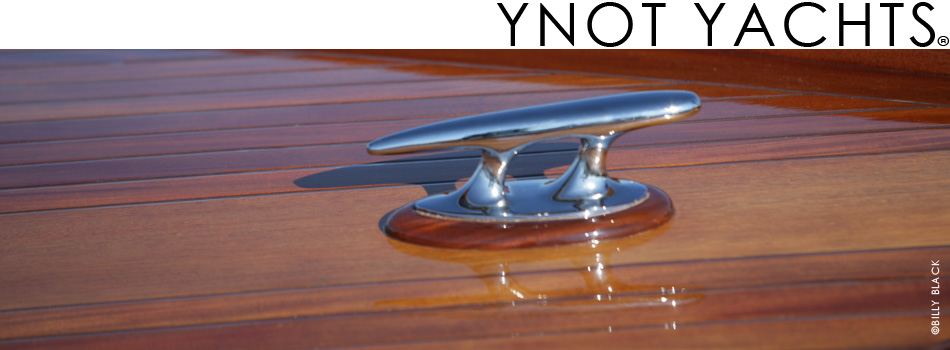

The hardware is a collection of vintage pieces, new stock and custom fabrication.  All bronze  hardware was chromed using a triple coat chrome process.  The new stock hardware is polished stainless steel
